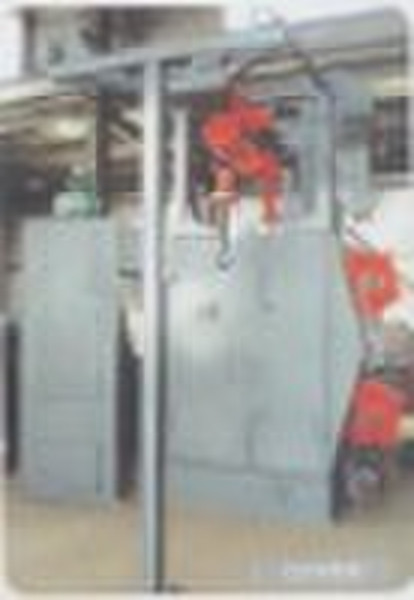

Q376 hook type shot blasting cleaning machine

Q372 hook type shot blasting cleaning machine This machine is a new small size cleaning machine, throwing steel shots at work pieces, which are turned over on the hook, so as to perform cleaning. Medium-small size forgings, castings and stampings are descaled, derusted, deburred and intensified in this shot blasting system, especially suitable for parts subject to collision. ModelQ376Indoor clean-up size (mm)1400*1400*1660The maximum size of cleaning up workpiece (mm)ø800*1200Blasting device 2units/3units(r.p.m.)2800Impeller’s diameter(mm)360Shot volume (kg/min)2*160The maximum load (kg)800The first hook of clean-up timeCasting5-10Forgings5-8Hoister productivity (kg/h)2000Dust air volume (m3/h)5000Total power (kw)23.25The largest dimensions of host (mm)1870*2080*3885Precipitator dimensions (mm)1680*1040*2800
